The newly reconfigured Ludlum 4525-Generation IV Series of Radiation Portal Monitors (RPMs) represents state-of-the-art technology for detecting orphan radiation sources and NORM. The revised systems are upgradable, with a lower cost of ownership, and represent a lower initial purchase price.

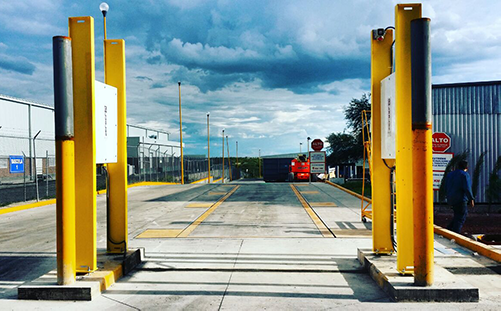

The Gen IV series of RPM systems are ruggedized, large plastic scintillation systems that can be optimally arranged to monitor moving vehicles entering into the system. Each detector system can be configured with two to six large detectors. Real-time data acquisition and analysis is performed directly at each detector system and then reported to a central PC for logging, reporting, and alarm notification.
Up to four detector systems (lanes) can be networked together via Ethernet or wireless to the central PC where vehicles entering from either direction can be monitored in real time. Each detector system additionally includes a remote control/annunciator panel to support operator awareness, alarm acknowledgement, and if necessary, backup operation in the event the central PC is unavailable.
Data from all the system sensors are acquired and checked by powerful, field-tested, and time-proven algorithms designed to check each load vigorously in a multi-dimensional, multi-layered manner before declaring any load as clean. Any abnormality is immediately alarmed and annunciated both locally and remotely. An optional camera system can capture the image of the offending vehicle. The image is included in the logged data for permanent record keeping. Alarms can also be configured to automatically directly notify shift supervisors by e-mail if desired.
The system is designed for ease of use and can be customized to accommodate a wide variety of site and application-specific criteria. Intuitive menus and controls
combined with pre-defined automatic event handlers ensure each situation is handled properly and consistently.
Gate Monitoring Software Package
Ludlum’s System Computer comes equipped with a gate Ludlum’s System Computer comes equipped with a gate monitoring software program accommodating up to four separate 4525 configured systems (lanes) via a 10Base-T Ethernet connection or 802.11g wireless system. This monitoring software automatically collects and archives data from all available lanes, displays alarms, and generates reports. When equipped with optional cameras, the system can both automatically capture images of each vehicle passing through the system or only those causing an alarm, and include it in the database. The gate monitoring software contains three major components:
SUPERVISOR: collects all data, saves it in databases, and contains all parameter settings. It manifests alarms and provides all control over the system.
ECHO: is used for remote monitoring and shows exactly what the Supervisor is doing, but does not allow any control functions. This program performs all alerting and reporting functions, and up to 10 ECHO stations can be configured per each supervisor computer. Each ECHO station can monitor an unlimited number of supervisor computers.
DATA VIEWER: queries the databases (background, alarms, and event log), filtering records based on date, alarm, and lane number. The Data Viewer can also re-print an alarm report, print summary reports for user-defined date and time ranges, and create new databases based on the current search queries.
EJ-200 plastic scintillator
Dual 5.1 cm (2 in.) photomultiplier tube (PMT) design, delivers over 30% more efficiency than single PMT designs
Hi gain, low-noise PMTs
Thermally protected to avoid temperature shock, includes embedded temperature sensors to present operators the actual temperatures inside the detector enclosure
0.318 cm (0.125 in.) lead background reduction shielding on 5 sides
NEMA 4X rated, stainless steel enclosure for environmental protection
Low density, aluminum front door for enhanced low-energy measurement
SYSTEM COMPUTER SPECIFICATIONS
USB Keyboard with Touchpad
Monitor 43.2 cm (17 in.) Black
Computer: Fanless Industrial
UPS (Uninterruptable Power Supply)
Intel® Atom Processor
2 GB RAM
80 GB Hard Drive Integrated SSD
Microsoft Windows® 7 Professional OS
Integrated Intel® Video
Integrated Intel® PRO Network
Integrated Realtek Sound
Wall Mount Bracket
Weight: 18.1 kg (40 lb)
Dimensions: 97.3 x 55.9 x 47.5 cm (39.8 x 22 x 18.7 in.) (H x W x D)
