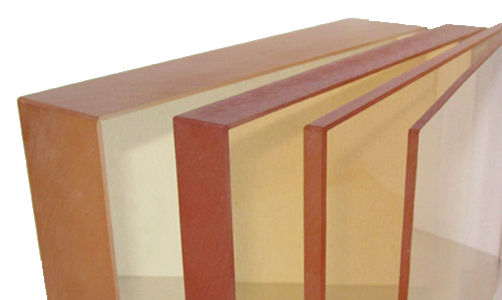

Lead Acrylic Clear PbTM
Clear-PbTM (lead acrylic) is available in many sizes and thicknesses.
| Lead equivalence (mm) | 0.3 | 0.5 | 0.8 | 1.0 | 1.5 | 2.0 | 3.0 |
|---|---|---|---|---|---|---|---|
| Lead equivalence (in) | 0.012 | 0.020 | 0.032 | 0.040 | 0.059 | 0.08 | 0.118 |
| thickness (mm) | 8 | 12 | 18 | 22 | 35 | 46 | 70 |
| Weight (lbs/ft2) | 2.3 | 3.5 | 5.9 | 7.2 | 11.5 | 15 | 23 |
| Standard Sizes (inches) | |
|---|---|
| 12 x 12 | 48 x 48 |
| 12 x 24 | 60 x 36 |
| 18 x 24 | 60 x 48 |
| 24 x 24 | 72 x 36 |
| 30 x 24 | 72 x 48 |
| 32 x 40 | 72 x 96 |
| 36 x 24 | 84 x 36 |
| 48 x 18 | 84 x 48 |
| 48 x 36 | 96 x 48 |
