Clear lead acrylic protection - body shielding without visual distortion· Undistorted viewing · Fixed height · Durable stainless steel construction These Mobile Radiation Shields offer a wide field of view with excellent body protection. Two models are offered with varying sized lead acrylic windows. Clear lead acrylic is a durable, shatter resistant protection and provides an optically clear view. The shield frames are constructed of durable stainless steel with a brushed finish. The shields will maintain their "like new" appearance for many years. The opaque section of the shield is made of a highly durable phenolic material. Shields are easily mobile and locked into position.

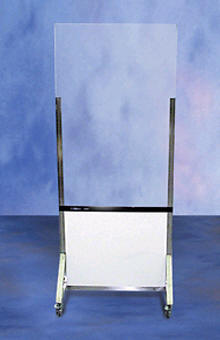

042-591 Mobile Radiation Shield
· Dimensions: 75" h x 30" w (191 x 76 cm)
Window: 24" h x 30" w (61 x 76 cm)
Opaque Panel: 48" h x 30" w (122 x 76 cm)
· Shielding:
Window: 0.5 mm lead equiv.
Opaque Panel: 0.8 mm lead equiv.
· Casters: Tente brand, medical grade. Foot operated locks to secure
position.
· Shipping Weight: 188 lb (85.2 kg)

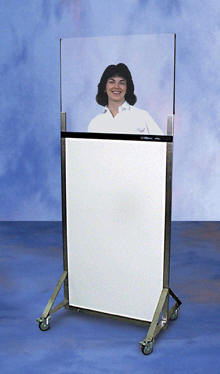

042-595 Mobile Radiation Shield
· Dimensions: 75" h x 30" w (191 x 76 cm)
Window: 48" h x 30" w (122 x 76 cm)
Opaque Panel: 24" h x 30" w (61 x 76 cm)
· Shielding:
Window: 0.5 mm lead equiv.
Opaque Panel: 0.8 mm lead equiv.
· Casters: Tente brand, medical grade. Foot operated locks to secure
position.
· Shipping Weight: 191 lb (86.6 kg)
042-591 Shield, Radiation, Mobile Window size 24" h x 30" w (61 x 76 cm).........$3,225.00
042-595 Shield, Radiation, Mobile Window size 48" h x 30" w (122 x 76 cm)........$4,275.00
56-311 CLEAR-Pb Mobile Barrier,
56-312 CLEAR-Pb Mobile Barrier
56-313 CLEAR-Pb Mobile Barrier
56-603 CLEAR-Pb Mobile Barrier, regular, 75 (h) x 30 in (w)
Overall size: 75 (h) x 30 in (w)
Window pane lead equivalent: 24 (h) x 30 in (w) 0.5 mm
Opaque panel lead equivalent: 48 (h) x 30 in (w) min. 0.03 in (0.8 mm)
Shipping weight approximately: 110 lb
56-604 CLEAR-Pb Mobile Barrier, Deluxe, 75 (h) x 30 in (w)
Overall size: 75 (h) x 30 in (w)
Window pane Size & lead equivalent: 60 (h) x 30 in (w) 0.5 mm
Opaque panel Size & lead equivalent: 12 (h) x 30 in (w) 0.5 mm
Shipping weight approximate: 113 lb
56-607 Clear-Pb Jumbo Bench-Top Shield, 56-607 Clear-Pb Jumbo Bench-Top Shield, 15"w x 24"h x 35mm
Clear-Pb panel is 35 mm thick with lead equivalence of 1.5 mm. Provides the following percentage of attenuation: 125i, 99.99%, 133Xe, 97.6%, 57Co, 99.8%, 99mTc 98%, 123i, 99.5% and 67 gauge, 67%
56-602 CLEAR-Pb Mobile Barrier, Nuclear Medicine, 61 (h) x 36 in (w)
Overall size: 61 (h) x 36 in (w)
Window pane lead equivalent: 24 (h) x 36 in (w) 0.8 mm
Opaque panel lead equivalent: 34 (h) x 36 in (w) 0.06 in (1.5 mm)
Shipping weight approx.): 170 lb
56-612 CLEAR-Pb Anesthesiology/O.R. Personal X-Ray Protection Mobile Barrier, 69 (h) x 24 in (w)
Overall size of barrier: 69 (h) x 24 in (w)
Window pane size: 48 in (h) x 24 in (w)
Lead-equivalence: 0.5 mm
Shipping weight: 51 lb (23 kg)
56-616 CLEAR-Pb Mobile Barrier, Deluxe, 75 (h) x 48 in (w)
Overall size: 75 (h) x 48 in (w)
Window pane lead equivalent: 36 (h) x 48 in (w) 0.5 mm
Opaque panel lead equivalent: 36 (h) x 48 in (w)min. 0.03 in (0.8 mm)
Shipping weight approx.): 230 lb
56-617 CLEAR-Pb Mobile Barrier, Deluxe, 75 (h) x 48 in (w)
Overall size: 75 (h) x 48 in (w)
Window pane lead equivalent: 36 (h) x 48 in (w) 1.0 mm
Opaque panel lead equivalent: 36 (h) x 48 in (w) 0.06 in (1.5 mm)
Shipping weight approx.): 312 lb
56-618 CLEAR-Pb Mobile Barrier, Ultra, 75 (h) x 72 in (w)
Overall size: 75 (h) x 72 in (w)
Window pane lead equivalent 36 (h) x 72 in (w) 0.5 mm
Opaque panel lead equivalent: 36 (h) x 48 in (w) min. 0.03 in (0.8 mm)
Shipping weight approx.): 334 lb
56-619 CLEAR-Pb Mobile Barrier, Ultra, 75 (h) x 72 in (w)
Overall size: 75 (h) x 72 in (w)
Window pane lead equivalent: 36 (h) x 72 in (w) 1.0 mm
Opaque panel lead equivalent: 36 (h) x 72 in (w) 0.06 in (1.5 mm)
Shipping weight approx.): 409 lb
