Model KH3-200 Tritium Collection System

Model KH3-200 Tritium Collection System

Featuring

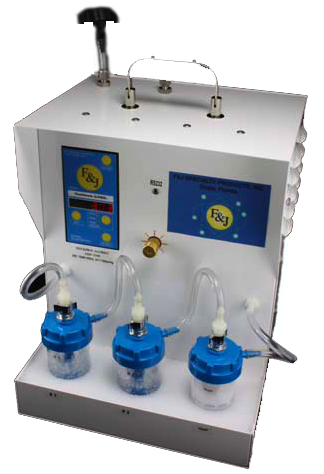

The Model KH3-200 Tritium collection system consists of a three 125 ml bubbler jar train for collection of tritium in water vapor. A diaphragm pump with an automatic flow control mechanism utilizing the F&J digital flowmeter system is provided. Typical flow range is 1 to 5 SLPM (other flow range options are available). Recommended sampling rate is 2-3 LPM. Real-time data download is available through the RS232 port. An optional flash card data storage device is available. The unit is designed for intermittent short-term indoor use. Please consult the product specifications for the design temperature range and the installation category.

Specifications

Pump Type: Diaphragm
Motor: Brushless Type; 12VDC PWM
Maximum Capacity: Typical 1-5 SLPM control range. Other flow ranges available upon request.
Power Requirements: 100-240 VAC; 50/60 Hz; 1 ampere; single phase
Fuse Protection: 2 amperes (in recessed plug)
Electrical Cord: All temperature, 3-wire, 16 gauge
Dimensions: 18 in H × 13 in W×12 in D (45.7 cm H×33.0 cm W×30.5 cm D)
Weight: 12.3 lbs. (5.6 kg)
Installation Category: Pollution Degree 2
Tritium Collection System: Removable 125 ml bubbler jars; One three bubbler train (2 bubbler jars and 1 moisture trap)
Air Flow Measurement System
-Air flow: ± 4% of full scale
-Temperature: ± 0.9ºF (0.5ºC) (Not displayed)
-Absolute Pressure: ± 0.6 inches Hg (15,24 mm Hg) (Not displayed)
On-board Calculations
-Flow calculation from differential pressure value corrected to a reference T and P
-Elapsed Time
-Cumulative Volume corrected to a reference T and P
Operating Temperature: (0º-40ºC) (32ºF-104ºF)
Storage Temperature: (-10ºC-50ºC) (14ºF-122ºF)
Operating Humidity: 0-95% RH non-condensing
Communications Interfaces: RS-232 available for real-time data download of airflow data
Options:
-Flash Card Data Storage Device 232FCDSD
-Flash Card (2 GB) 372239
-PC Flash Card Reader SDDR-199-A20
