Model 3001-3RK Emergency Kit

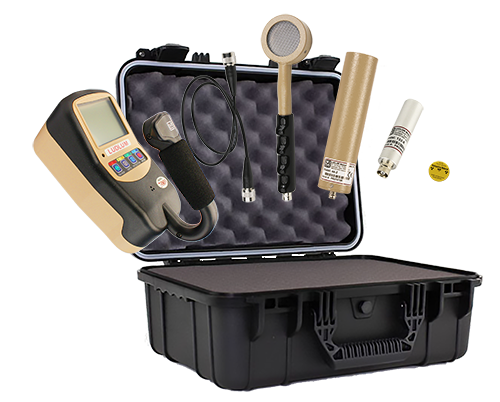

3001-3RK emergency kit

Pancake G-M, NaI Scintillation and High Range G-M Probes

Alpha, Beta, Gamma

Features

The Model 3001-3RK (formerly called Model 3001-3RK2) consists of several dependable, high-quality detectors matched with the versatile Model 3001 survey meter. The devices are packaged in a rugged transport and storage case with the required batteries, cable, and calibration certificate for a radiation emergency response kit.

The primary instrument, the Model 3001, is an ergonomically-designed instrument with four selectable detector buttons, enabling the user to quickly exchange detectors in the field. Alpha, beta, and gamma surveys may be conducted in two sets of units. The desired unit is chosen by pressing the Units button. A color-coded button selects the desired detector. An internal switch is used to enable or disable the front-panel setup feature to protect desired settings from inadvertent modification. Three modes of operation - RATE, MAX, and COUNT - are available. A large back-lit LCD screen, intuitive interface, warning alarm, and durable, splash-proof construction mean the Model 3001 will be the instrument of choice for your kit.

Three detectors, the popular Model 44-9 alpha-beta-gamma detector, Model 133-6 gamma detector, and the Model 44-2 high-energy gamma detector, accompany the Model 3001.

The transport and storage case includes dense pick-and-pluck foam, watertight capability, and hasps with padlock holes for additional security. A manual pressure relief valve is used in consideration of potential transport by aircraft.

Ludlum provides a 1 µCi ( 137 Cs) check source, check source holder, cable, and calibration certificate making this kit ready-to-go.

Ludlum offers several versions of pre-packaged response kits suitable for a wide variety of applications. If you desire more or different detectors, or other changes to our standard kits, please contact us regarding a customized kit.

Specifications 3001 Survey Meter

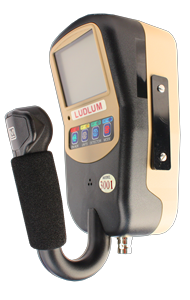

Model 3001 digital survey meter, multi detector Model 3001 control panel

Compatible Detectors GM, scintillation, or proportional
Display 3-digit auto-ranging LCD with large 20 mm (0.8 in.) digits.
Units (k)cps, (k)cpm, (k)Bq, (k)dpm, (μ)(m)R(/h), (μ)(m)Sv(/h).
Indicators bar graph, MAX, ALARM, USB, audio, low battery.
Display Range
0.0 cps to 99.9 kcps
0.00 cpm to 999 kcpm
0.00 Bq to 99.9 kBq
0.00 dpm to 999 kdpm
0.00 μR/h to 999 R/h
0.00 μSv/h to 999 Sv/h
Max Display can be set to limit display to calibrated range
Backlight Built-in ambient light sensor automatically activates LED backlight, unless internal dipswitch is set to continuous-On (will reduce battery life)
Controls
ON/ACK: Press to turn ON; Tap to acknowledge alarms and silence alarm tone; Press to reset sigma audio alarm; Hold for OFF
UNITS: Changes the units between count rate (cpm, cps), dose/exposure (µSv/h, mR/h), or disintegration (dpm, Bq)
DETECTOR: Selects active detector
MODE: Alternates between RATE (count rate), MAX (captures peak rate), and COUNT (user-selectable preset count time from 0 to 10 minutes). Number of modes can be reduced in setup.
LOG: Press to store meter reading (requires Lumic Data Logger Kit, see Options)
Data Logging Can store up to 1000 data points internally. Requires Lumic Data Logger Kit, see Options.
Response Time User-selectable from 1 to 60 s, or Auto-Response Rate FAST or SLOW
Alarms Count rate, exposure/dose, and scaler alarm setpoints adjustable over the display range
Overload Protection High count rate saturation protection prevents false display of lower count rates
Loss of Count Protection After a user-settable time interval (default 60 seconds) of no pulses from detector, unit will flash a zero reading and the alarm audio will be triggered
Dead Time Correction Employs first and second order corrections for extended performance
High Voltage 400 to 1500 Vdc
Threshold -2 to -100 mVdc
Audio Greater than 75 dB at 0.6 m (2 ft), approximately 4.5 kHz
Power Four alkaline or four rechargeable “AA” batteries (instrument does not support in-device charging)
Battery Life Approximately 500 hours (as low as 100 hours with backlight configured for continuous-on), 16-hour low battery warning
Construction High-impact plastic with water-resistant rubber seals and separate battery compartment
Temperature Range -20 to 50 °C (-5 to 122 °F)
May be certified for operation from -40 to 65 °C (-40 to 150 °F)
Enviornmental Rating NEMA rating of 5 or IP rating of 53
Size (H x L x W) 16.5 x 11.4 x 21.6 cm (6.5 x 4.5 x 8.5 in.)
Weight 0.9 kg (2.0 lb)

44-9 pancake G-M Detector Specifications

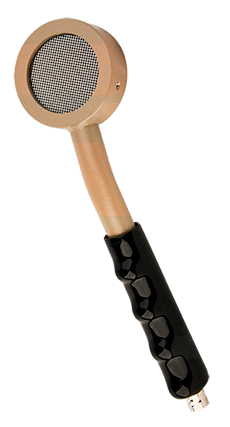

44-9 pancake G-M probe

Indicated Use Alpha, beta, gamma survey; Sample counting
Detector Type Pancake-type, halogen quenched G-M
Window 1.7 ± 0.3 mg/cm2 mica, protected by a stainless steel screen (79% open)
Window Area Active: 15.5 cm2 (2.4 in2)
Open: 12.3 cm2 (1.9 in2)
Efficiency (4π) 14C: 5%
90Sr/90Y: 22%
99Tc: 19%
32P: 32%
239Pu: 15%
99mTc: ≤ 1%
125I: 0.2%
Typical Sensitivity
(137Cs gamma) 3300 cpm per mR/hr
Energy Response Energy dependent (see Energy Response Curve on Graphs tab)
Typical Background
(10 µR/hr field) 60 cpm
Typical Dead Time 80 μs
Operating Voltage 900 Vdc
Connector Series "C" (others available)
Input Sensitivity ≥ -30 mV
Construction Aluminum housing with beige powder-coat finish, stainless steel screen (79% open)
Size (H x W x L) 4.6 x 6.9 x 27.2 cm (1.8 x 2.7 x 10.7 in)
Weight 0.5 kg (1 lb)

Specifications 44-2 NaI Scintillation Probe

Model 44-2 NaI scintillation probe

Indicated Use Low-level, wide-energy gamma detection
Detector Type NaI(Tl) scintillator, 2.5 cm (1 in) dia. x 2.5 cm (1 in) thick
Efficiency (4π) 125I: 7%
57Co: 10%
137Cs: 3%
60Co: 3%
Typical Sensitivity
(137Cs gamma) 175 cpm per μR/hr
Recommended Energy Range 20 keV to 1.5 MeV
Energy Response Energy dependent
Typical Background
(10 µR/hr field) 1800 cpm
Photomultiplier Tube 2.86 cm (1.123 in) diameter, magnetically shielded
Operating Voltage 500 to 1200 V
Temperature Range -15 to 50 °C (5 to 122 °F)
May be certified for -40 to 65 °C (-40 to 150 °F)
Environmental Rating IP65
Connector Series "C"
Construction Aluminum with beige powder coat
Size (D x L) 5.1 x 21 cm (2 x 8.25 in)
Weight 0.5 kg (1 lb)

Specifications 133-6 High Range Gamma Probe

Model 133-6 high range G-M probe

Part Number 133-6: 47-1718
Indicated Use Gamma area monitoring
Detector Type Energy compensated, halogen quenched GM, 30 mg/cm2 stainless steel
Linear Range Without DTC*: 40 μSv/h to 60 mSv/h (4 mR/hr to 6 R/hr)
With DTC*: 40 μSv/h to 400 mSv/h (4 mR/hr to 40 R/hr)
With SCC**: 40 μSv/h to 10 Sv/h (4 mR/hr to 1000 R/hr)
Typical Sensitivity
(137Cs gamma) 1.8 cpm per μSv/h (18 cpm per mR/hr)
Energy Response
(60 keV - 3 MeV) Within 25% of true value
Typical Background
(10 µR/hr field) ≤ 1 cpm
Typical Dead Time 50 µs
Operating Voltage 550 Vdc
Connector 133-6: Series "C". Other connectors are available upon request.
Size (D x L) 133-6: 2.2 x 10.2 cm (0.88 x 4 in.)
133-6-1: 2.5 x 10.2 cm (1 x 4 in.)
Weight 0.090 kg (0.20 lb)
