Model 9-7 Ion Chamber

Model 9-7 Ion Chamber Model 9-7 Ion Chamber controls

Features

The Ludlum Model 9-7 Ion Chamber Display Unit is a digital readout and control unit that can be attached to any compatible ion chamber (sold separately). This instrument is a direct replacement for the discontinued Eberline Model RO-7, and will work with any of the existing Eberline RO-7 series detectors, extensions, and cables.

This instrument provides remote monitoring in high-range beta and gamma fields. The gamma measurement range is 0 to 19.99 kR/hr, covered by three separate detectors. The 9-7 automatically recognizes which detector is connected so no recalibration or adjustment is required when switching detectors. These ion chambers can either be connected directly to the instrument or via rigid extensions, flexible cables, or both, to accommodate the length required. The detectors will remain functional with extensions/cables up to 152 m (500 ft) in length.

The instrument display and controls are very similar to the original RO-7 to minimize any procedural changes or re-training. The backlit LCD display presents three large 127 mm (0.5 in.) sized characters together with a floating decimal point to indicate the measurement along the R/hr scale. When connected to the highest range detector, a separate kR/hr indicator is prominently illuminated to warn the operator of the higher scale in use. A rotary switch for selecting instrument On/Off and Battery Status, an LCD backlight switch, and  Zero Adjust knob are the extent of the external operator controls.

Specifications

Detection Range Depends on detector connected, see optional detector list below
Compatible Detectors
9-7-LD (Low Range: 0.001 to 1.99 R/hr)
9-7-BM (Mid Range: 0.1 to 199.9 R/h)
9-7-BH (High Range: 0.01 to 19.99 kR/hr)
Display LCD, 3 1/2 digits, 1.3 cm (0.5 in.) high, includes decimal point and minus sign, backlit illumination provided by activating separate user-controllable switch
Indicators
Low battery alert
kR/hr range active

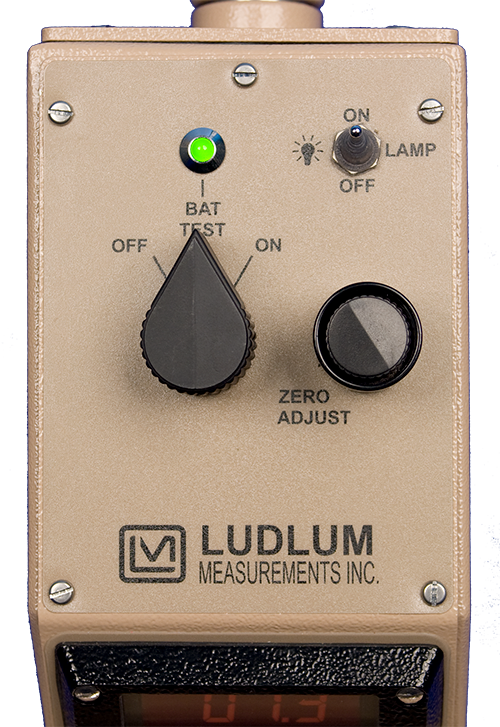

External Controls
3-position rotary switch for instrument OFF, BAT TEST, and instrument ON
Zero adjust control
Display backlight on/off switch
Response Time Approximately 2.5 s to 90% of final reading on all ranges
Temperature Range -20 to 50 °C (-4 to 122 °F)
Humidity 0 to 90%, non-condensing
Power 2 "D" cell batteries
Battery Life 160 hours
Construction Aluminum with beige powder coat case with separate battery compartment and accompanying front access door, includes folding tripod stand and carrying handle
Size (H x W x L) 24.1 x 9.7 x 23.6 cm (9.5 x 3.8 x 9.3 in.)
Weight 1.6 kg (3.5 lb), including batteries
