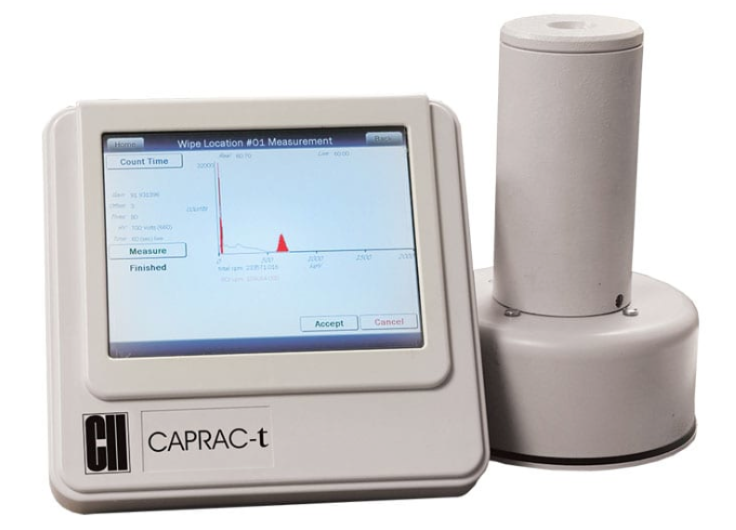

Caprac-t Wipe Test Counter
Capintec's CAPRAC-t® Wipe-Test Counter covers the regulations in 10 CFR Part 35.315 (200 dpm requirements for unrestricted areas and iodine contamination).
Measure for measure, no other well counter offers the speed, accuracy and complete range of built-in features provided by the compact CAPRAC-t®. It performs a wipe test in just 6 seconds (for 1 nCi) and detects extremely low levels of activity with the accuracy only a NaI drilled-well detector can provide.
The CAPRAC-t® can also serve as a single-well gamma counter in departments that do not need multi-sample changers. User-defined protocols, trigger levels, and counting times are a "snap". A 256-channel pulse-height analyzer permits built-in gamma spectroscopy. Definable conversion factors for specific radionuclides allow the CAPRAC-t® to calculate results in cpm, dpm, nCi, cps, dps, or kBq. The CAPRAC-t also displays photon-energy histograms.
The CAPRAC-t® is engineered and built for years of consistent, reliable performance and is Curie or Becquerel selectable. The unit has automatic background subtraction and self-diagnosis programs for systems testing with optimized signal-to-noise ratio. It includes a lead outer shield (1.3 cm thick) with optional auxiliary shield available.
Features
- 8 in. SVGA touch screen color display
- 256 channel MCA with detailed spectrum for identification analysis
- NaI drilled-well crystal detector
- Automatic Energy Calibration, Constancy Check, and Background Subtraction
- Automated well QC including chi-square and MDA
- Manual and Automatic ROI
- Sets user definable protocols for wipes
- Print outs of all data for permanent records with the optional printer
- Direct readouts with spectrum display are in cpm, dpm, Curies and Bequerels
- Meets all state and NRC wipe test requirements
- USB and RS232 communication ports for PC and printer
- Compatible with nuclear medicine information management systems via USB
- Lab tests include Schilling, Plasma and RBC volume
- Built-in database for test and wipe results as well as QC
Specifications
Detector: 1.5 inch Sodium Iodine (NaI) drilled-well crystal
ROI: 256 Channel MCA manual and automatic ROI
Trigger Levels: User definable; Automated Calibration and Background Subtraction
QC Tests: Reproducibility, Chi-Square, MDA
Counting Rate: 10,000 cps
Display Screen: Type: 8 in VGA-LCD color touch screen
Bq/Ci Reading: User selectable
Activity Display: Selected radionuclide, efficiency, measured activity, and display units; Count Rate Values for both wipe and lab results
Printer: RS-232 or USB Ports for compatible non-host based printers
PC Port: Interface: RS-232 and USB
Power Requirement: 100-240 VAC (50/60 Hz) 25W
Test: Diagnostic: Full test of program and system memories
Console Measurements
Dimensions: 9.5 in h x 9.0 in w x 10.5 in l (42 x 23 x 22 cm)
Weight: 7.5 lbs. (.4kg)
Well Counter Measurements
Well Counter Dimensions: 9.28 in h x 6 in d (23.8 x 15.2 cm)
Weight: 15.2 lbs. (6.9 kg)
Crystal Dimensions: 1.5 in x 1.75 in (3.8 x 4.4 cm)
Shielding: .5 in (1.3 cm) lead
Well Diameter: .67 in (1.7 cm)
Well Depth: 1.5 in (3.8 cm)
Cable Length: 9 ft (2.7 m)
