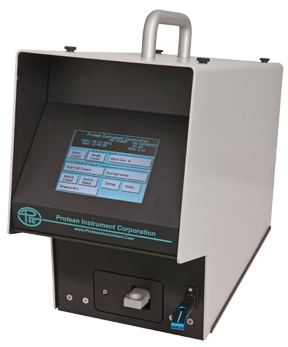

Protean Model MPC-900-DP

• Manual Single Sample Counter
• 5.1cm (2 In.) Standard Planchet Diameter
• Dual Phosphor Scintillator Detector
• Touch Screen
• Light Weight Portability
• Radon Compensation For Air Filters

The MPC-900-DP is a convenient and versatile “benchtop” counter equipped with a dual phosphor scintillator type detector that supports gasless operation and easy portability. This sample counter is ideal for standard Health Physics applications such as smears and air filters.

Specifications

Type
Sample Changer: Manual
Number of Detectors: 1
Counter: Gross
Sample Size: 5.1 cm (2 in.) Diameter
Interface: Touch Screen

Detector
Size: 5.1 cm (2 in.) Diameter
Type: ZnS+plastic dual phosphor
Window: Aluminized 80 µg/cm2
Shielding: (Optional)

Sample
Size: 5.1 cm (2 in.) Diameter planchets
Capacity: 1
Depth: 1/8, 1/4, 5/16 inch
Data Export: USB Flash Drive, RS-232

Interface
Type: Touch Screen
Compatible Software: DUO Software

Performance
Alpha Background: 0.2 cpm (typical) 0.3 cpm (warranted)
Beta Background: 40 cpm (typical) 65 cpm (warranted)
Th²³⁰ Efficiency: 23%
Sr⁹⁰/Y⁹⁰ Efficiency: 45%
Tc⁹⁹ Efficiency: 30%
Alpha-Beta Crosstalk: < 0.1%
Beta-Alpha Crosstalk: < 0.1%
Count Modes: Alpha Only, Beta Only, Alpha/Beta Simultaneously

Physical
Size: 45.7 x 22.9 x 40.6 cm (18 x 9 x 16 in.) (H x W x D)
Weight: 18.1 kg (40 lb) Installed

Compatible Protean Application Software Packages

• DUO Software

Options

• Lead ring shielding, 22.7 kg (50 lb), Order part number MPC-900-SHLD
• Remote PC Interface (without touch screen) Order Model MPC-900-PC-GFW-2

Specifications are subject to change without notice
