Protean Model MPC-900-GFW

• Manual Single Sample Counter
• 5.1cm (2 In.) Standard Planchet Diameter
• Hemi-Gas Flow Proportional
• Gas-PRO™ Failsafe Counting
• Touch Screen
• Gas Conservation

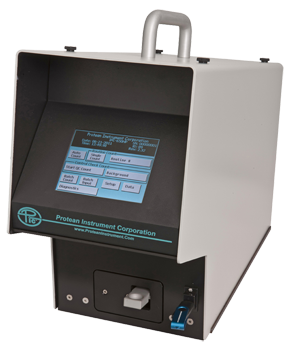

The MPC-900-GFW is a convenient and versatile benchtop counter equipped with a gas-flow proportional type detector that supports easy portability. This sample counter is ideal for standard Health Physics applications such as smears and air filters.

Specifications

Type
Sample Changer: Manual
No. of Detectors: 1
Counter: Gross
Interface: Touch Screen

Detector
Size: 5.7 cm (2.3 in.) Dia.
Type: Hemi-Style Gas Flow Proportional
Window: Aluminized, 80 µg/cm²
Counting Gas: P-10, 60 cc/min.@ 10 psi
Gas-PRO Protection: Yes
Shielding: Optional

Sample
Size: 5.1 cm (2 in.) diameter Planchets
Capacity: 1
Depth: 1/8, 1/4, 5/16 inch
Data Export: USB Flash Drive, RS-232

Interface
Type: Touch Screen
Compatible Software: Vista 2000, DUO Software

Performance
Alpha Background: 0.05 cpm (typical) 0.1 cpm (warranted)
Beta Background: 35 cpm (typical) 55 cpm (warranted)
Po²¹⁰ Efficiency: 40%
Am²⁴¹ Efficiency: 40%
Th²³⁰ Efficiency: 40%
Sr⁹⁰/Y⁹⁰ Efficiency: 55%
Tc⁹⁹ Efficiency: 35%
Cs¹³⁷ Efficiency: 40%
Alpha-Beta Crosstalk: < 0.1%
Beta-Alpha Crosstalk: < 0.1%
Count Modes: Alpha only, Beta only, Alpha/Beta simultaneously

Physical
Size: 45.7 x 22.9 x 40.6 cm (18 x 9 x 16 in.) (H x W x D)
Weight: 18.1 kg (40 lb) installed

Compatible Protean Application Software Packages

• DUO Software
• Vista 2000 Applications Software

Options

• Lead ring shielding, 22.7 kg (50 lb), Order part number: MPC-900-SHLD
• Remote PC Interface (without Touch Screen) Order Model MPC-900-PC-GFW-2

All specifications are subject to change without notice.
