Lead Pigs (Containers)

Containers for Radioactive Material Storage

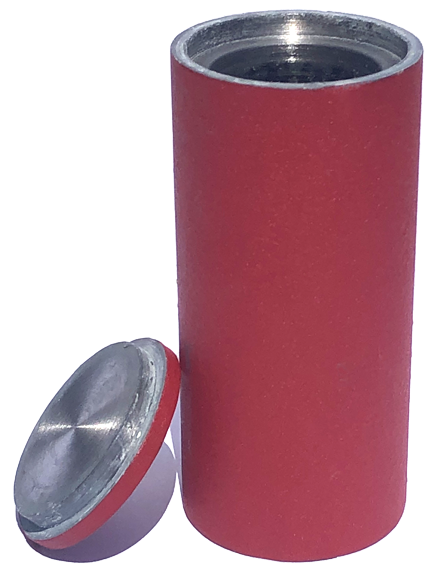

Model 305 Thin-Walled Lead Pig

This thin-walled lead pig container is ideal for low level gamma radioactive waste. It is the most lightweight and least expensive model in our selection.

Outer Diameter: 2.37 inches
Outer Height: 5 inches
Interior Height: 4 inches
Color: Red

16A-305-LC Thin Walled Lead Pig

Model 309 Lead Pig - For Storage of Check Sources

The 309 lead pig is ideal for shipping and storage of exempt check sources. It is designed to hold up to 20, 1.0 inch diameter disk sources.

Specifications

Exterior Dimensions: 2.25 in x 3.6 in
Interior Dimensions: 1.25 in x 2.65 in
Wall thickness: 0.5 in
Weight: 4.7 lbs (2.13 kilograms)

Model 16A-309-LC Lead Pig for storage of low level radioactive gamma check sources

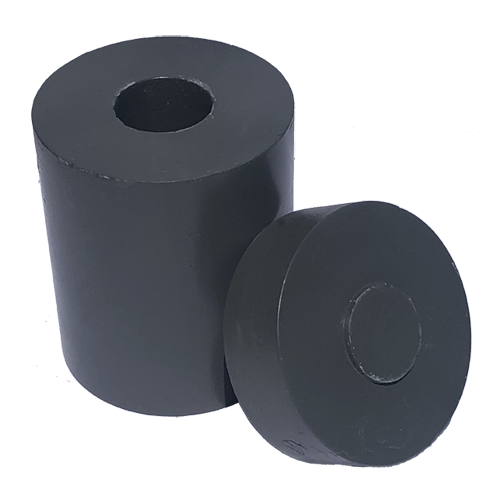

Model 308 Lead Pig - Thick Walled

The 308 lead pig, with a 1.25 inch thick lead wall, is ideal for higher energy gamma storage, including Cesium-137.

Specifications

Exterior Dimensions: 4 in x 5.875 in
Interior Dimensions: 1.5 in x 3.25 in
Wall thickness: 1.25 in
Weight: 28 lbs

16A-308-LC Thick-Walled lead pig for higher activity gamma radioactive storage

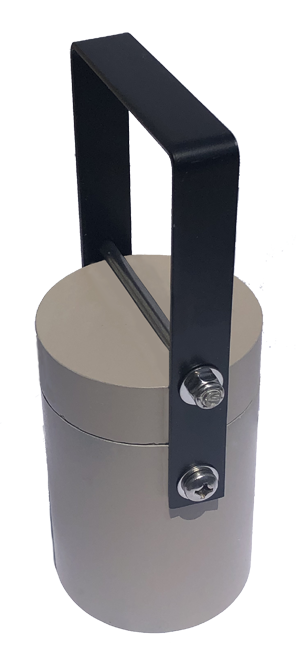

Model 308 Lead Pig with Handle - Thick Walled

The 308 LCH lead pig, is our thick-walled lead pig equipped with an ergonomic handle. The 1.25 inch thick lead-walled container is ideal for higher energy gamma storage, including Cesium-137. The handle allows for easy portability.

Specifications

Exterior Dimensions: 4 in x 5.875 in
Interior Dimensions: 1.5 in x 3.25 in
Wall thickness: 1.25 in
Weight: 28 lbs

16A-308-LCH Thick-Walled lead pig, with handle for higher activity gamma radioactive storage
