Benchtop Shields

For Gamma Radiation

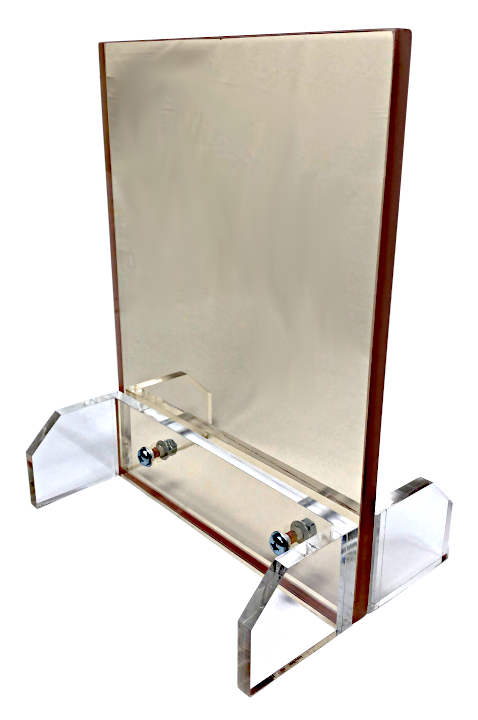

Vertical Leaded Acrylic Shield

Clear Pb vertical benchtop shield

These benchtop acrylic shields are ideal for laboratory use when low energy gamma radiation is present. They are made of  "clear Pb" which consists of an acrylic copolymer resin into which lead is chemically introduced as an organic salt compound. "Clear Pb" contains 30% lead by weight. Its Physical properties are similar to those of conventional acrylic resins. Vertical shields include 0.5 mm and 1.5 mm lead equivlance. A larger and smaller size is avaiable in each thickness.


Model Dimensions
16APBA-15B (12 in x 18 in) 1.5 mm PB eq
16APBA-05B  (12 in x 18 in) 0.5 mm PB eq

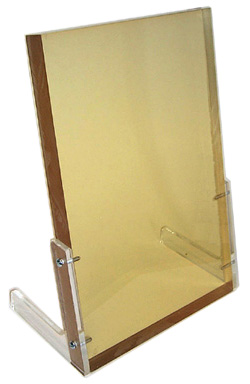

Leaded Acrylic Shield, Angeles at 15 Degrees

15 degree benchtop gamma radiation shield

The angled shields are available in 12 in x18 in dimensions in 1.5 mm lead equivalence or 0.5 mm lead equivalence. Leaded acrylic, "clear Pb" is made from an acrylic copolymer resin into which lead is chemically introduced as an organic salt compound. "Clear Pb" contains 30% lead by weight. Its Physical properties are similar to those of conventional acrylic resins.


Model Dimensions
16A-PBA-15BA-15 (12 in x 18 in) 1.5 mm PB eq
16A-PBA-05BA-15 (12 in x 18 in) 0.5 mm PB eq
