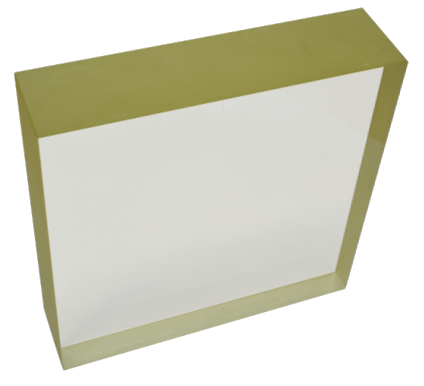

Lead Glass
For Transparent X-ray Shielding
Leaded glass X-ray shielding is made of a quality optical grade material, offering stable radiation protection with visual clarity. It offers high transmittance and does not discolor due to radiation.
Lead Glass Thickness and Attenuation
| Thickness |
7 mm |
9 mm |
14 mm |
17 mm |
| Lead Equivalence (inches) |
1/16 inch |
5/64 inch |
7/64 inch |
1/8 inch |
| Lead Equivalence (mm) |
1.6 mm |
2.0 mm |
3.0 mm |
3.3 mm |
| X-Ray Peak (kV) |
150 |
150 |
200 |
200 |
| Weight (lbs/sq.ft) |
6.5 |
8.1 |
12.5 |
14.8 |
| Safety Laminated |
No |
No |
No |
Yes |
Lead Glass Size
| 8 x 10 |
12 x 24 |
24 x 24 |
36 x 36 |
48 x 60 |
| 10 x 10 |
14 x 18 |
24 x 30 |
36 x 48 |
48 x 72 |
| 10 x 12 |
16 x 20 |
24 x 36 |
36 x 60 |
48 x 84 |
| 12 x 12 |
16 x 24 |
24 x 48 |
36 x 72 |
48 x 96 |
| 12 x 16 |
18 x 24 |
30 x 30 |
36 x 84 |
|
| 12 x 18 |
18 x 26 |
30 x 36 |
36 x 96 |
|
| 12 x 20 |
20 x 24 |
32 x 40 |
48 x 48 |
|
