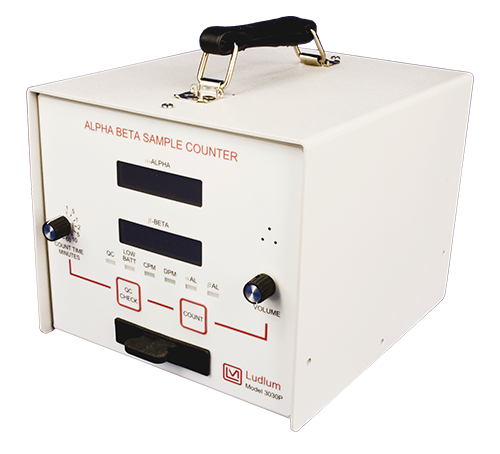

Model 3030P Alpha-Beta Sample Counter
Features
- Fully Integrated Alpha-Beta Sample Counter
- Simultaneous Alpha and Beta Counting
- Employs PIPS™ Detector
- Ultra Low A/B Crossover & Backgrounds
- Adjustable Alpha Window for Radon Rejection
- Data Logging with USB Connectivity
- 48-Hour Battery Operation
- Includes PC Software
The 3030P with a solid state PIPS™ detector facilitates efficient and cost-effective, simultaneous alpha and beta sample counting for air filters, smears, and swipes. This instrument meets the newer Electric Power Research Institute (EPRI) guideline for detecting a few disintegrations per minute of alpha amidst several hundred-thousand disintegrations per minute beta background. All data are automatically logged and easily retrievable via a USB connection. The light weight and battery operability afford convenient use in the field. With the optional detector shield, the Model 3030P can be used virtually anywhere.

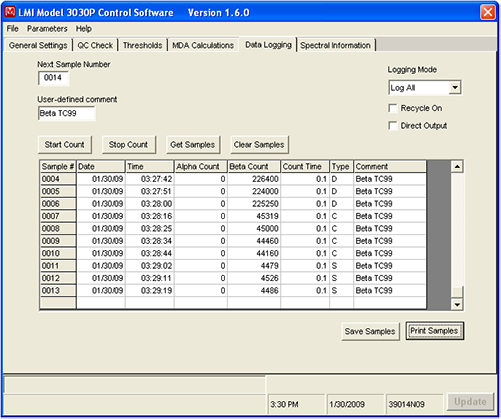

The instrument comes with PC control software that allows the user to set all parameters, view QC check settings, change alpha and beta window and threshold values, perform MDA (Minimum Detectable Activity), and retrieve the sample data saved to the logging memory.
Specifications
Detector Solid-state silicon detector
Active and Open Area 1700 mm2
Alpha Efficiency (4π)
239Pu: 35%
241Am: 30%
Beta Efficiency (4π)
99Tc: 15%
137Cs: 23%
90Sr/90Y: 36%
Background(approx. 10 µR/hr field)
Alpha: 3 counts or less in 10 minutes (≤ 0.3 cpm)
Beta: 350 counts or less in 10 minutes (≤ 35 cpm)
Crosstalk (approx. 10 µR/hr field)
Alpha: ≤ 5%
Beta: ≤ 0.1%
Sample Size Capable of holding 2.5 cm (1 in.) or 5.1 cm (2 in.) diameter samples (with provided insert), up to 1.02 cm (0.4 in.) thick
Scalers Two each (one per channel), six-digit LCD displays with backlights providing a range of 0 to 999,999 counts (started by COUNT button)
Scaler Linearity Reading within 2% of true value
Count Timer Single timer, switch adjusts from 0.1 to 60 minutes (.1, .5, 1, 2, 5, 10, 60) or selects PC (PC is a user-customizable setting that allows user-defined counts from 0.1 to 1666.6 minutes)
Alarm Alpha, beta, and alpha + beta alarms are user-settable

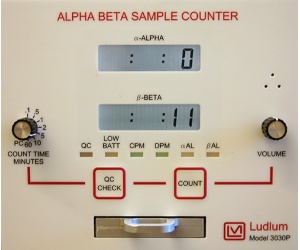

Status Indicators
QC: Daily Quality Check needed
LOW BATT: Battery power is low
CPM/DPM: Counting in CPM or DPM mode
αAL/βAL: Count has exceeded alarm set point
Background Subtract May be subtracted automatically in either CPM or DPM modes
Interface USB - includes a 1 meter (39 in.) USB cable for connection to a PC
Software Free PC interface software allows parameter setup and data logging
Audio Built-in unimorph type speaker with volume control to provide a dual tone click-per-event audio
Power Universal AC input (95 to 250 Vac, 50‒60 Hz) wall-mount supply outputting 5 Vdc at up to 1 amp, or four “D” cell batteries
Battery Life 48 hours
Temperature Range -20 to 50 °C (-4 to 122 °F)
Construction Aluminum housing with gray powder-coat finish and subsurface printed front panel
Size (H x W x D) 19 x 20.3 x 25.4 cm (7.5 x 8 x 10 in.), including handle in height and drawer handle in depth
Weight 3.9 kg (8.5 lb) with four “D” cell batteries, with added shielding weight is approximately 8.4 kg (18.5 lb)
