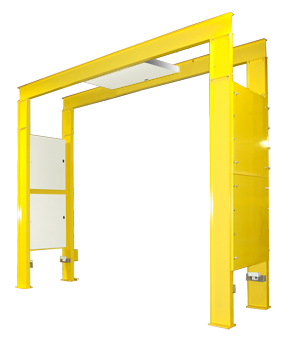

Model 4525-12500 Gate Monitor
Vehicle Radiation Monitor
Model 4525-12500
PN: 48-4021
Detectors: 5
Total Detector Volume: 205 L (12500 in3)
Features
- Use to Monitor Trucks and Personal Vehicles
- Large, Highly Sensitive, Industrial Duty Plastic Scintillation Detectors
- Reliable Operation with Very Low False Positives
- Real-time Central Data Logging, Reporting, and Alarm Notification
- Bi-Directional Entry
- User-Friendly Operation
- Excellent Service and 24-Hour Tech Support
- 8-hour Battery Backup in Event of Power Loss
- Modular and Upgradeable
- Variety of Options to Customize the System to Meet Your Needs
- Made in USA
Specifications
- Five plastic scintillation detectors
- High gain, low noise, 2 in. dia. photomultiplier tubes (PMTs), 2 ea. per detector; Dual PMT design delivers 30% more efficiency than single PMT designs
- Shock protection to resist vibration-induced noise
- Thermal protection to avoid temperature shock, includes embedded temperature sensors to monitor actual temperature inside the detector enclosure
- Carbon steel frame and detector enclosure
- NEMA 4 rated detector enclosure for environmental protection
- 6.4 mm (0.25 in.) thick lead shielding on five sides of detector to reduce background
- Low density aluminum detector door for enhanced low energy measurements
- Dual-Channel: Increased sensitivity by analyzing separate Hi and Low Gamma channels with independent thresholds and alarm ratios
- Two pairs of IR sensors
- Alarms: Radiation, Overspeed, Detector Fail
- Model 4525 Series Vehicle Monitoring Software
- Reporting Feature
- Computer Requirements – Windows 7 or higher
- Power: 120 - 240 Vac, 2 A
