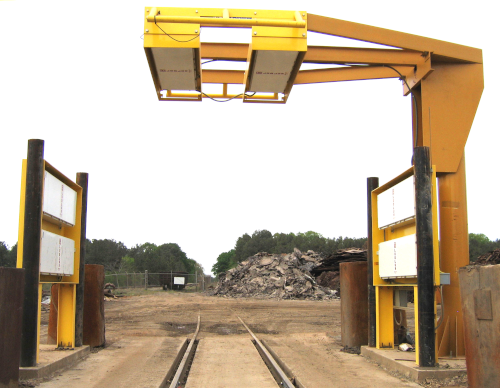

Model 4525-21000 Gate Monitor

Radiation Monitor for Large Vehicles

Model: 4525-21000
PN: 48-3609
Detectors: 6
Total Detector Volume: 344 L (21000 in³)

Features

• Use to Monitor Trucks and Personal Vehicles
• Large, Highly Sensitive, Industrial Duty Plastic Scintillation Detectors
• Reliable Operation with Very Low False Positives
• Real-time Central Data Logging, Reporting, and Alarm Notification
• Bi-Directional Entry
• User-Friendly Operation
• Excellent Service and 24-Hour Tech Support
• 8-hour Battery Backup in Event of Power Loss
• Modular and Upgradeable
• Variety of Options to Customize the System to Meet Your Needs
• Made in USA

Specifications

• Six plastic scintillation detectors
• High gain, low noise, 2 in. dia. photomultiplier tubes (PMTs), 2 ea. per detector; Dual PMT design delivers 30% more efficiency than single PMT designs
• Shock protection to resist vibration-induced noise
• Thermal protection to avoid temperature shock, includes embedded temperature sensors to monitor actual temperature inside the detector enclosure
• Carbon steel frame and detector enclosure
• NEMA 4 rated detector enclosure for environmental protection
• 6.4 mm (0.25 in.) thick lead shielding on five sides of detector to reduce background
• Low density aluminum detector door for enhanced low energy measurements
• Dual-Channel: Increased sensitivity by analyzing separate Hi and Low Gamma channels with independent thresholds and alarm ratios
• Two pairs of IR sensors
• Alarms: Radiation, Overspeed, Detector Fail
• Model 4525 Series Vehicle Monitoring Software
• Reporting Feature
• Computer Requirements – Windows 7 or higher
• Power: 120 - 240 Vac, 2 A
